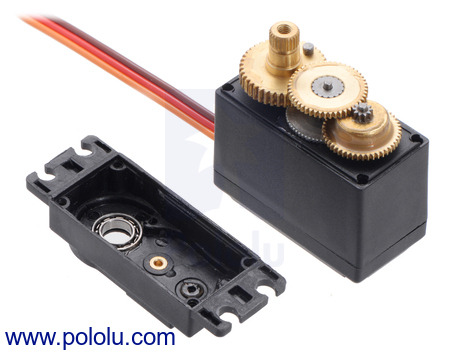

We added the FEETECH High-Torque Servo FS5115M to our expanding RC servo selection. This standard-size analog servo has a stall torque of 215Â oz-in (15.5Â kg-cm) at 6Â V, more than twice the torque of our standard-size servos with plastic gears thanks to its powerful motor and all-metal gear train. This higher torque requires more power: this servo can draw bursts of current in excess of 3Â A at 6Â V, about three times higher than a typical standard-size servo. The output shaft is supported by two ball bearings for reduced friction.
 |
Comparison to the Power HD 1501MG high-torque servo

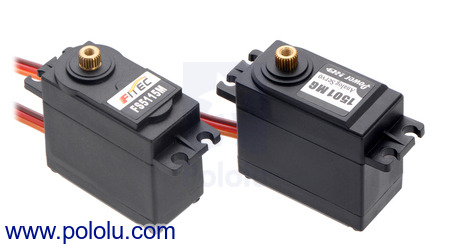

This servo is a lower-cost alternative to the 1501MG from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5115M and the 1501MG side by side:
 |
Expect more new FEETECH servos in the coming weeks!
