With more and more smart terminals, after intense and busy work, the chances of returning home to start a computer are becoming less and less, but TV is the most used one. Sitting in bed before bedtime to enjoy a large area in the United States and the United States, has become the most beautiful moment of each workday night.
This is my previous solution: a router, a mobile hard disk, a quad-core TV box connected to the TV, and it constitutes the simplest, most cost-effective home video system. It was also safe to use and it took more than a year, but with the popularization of 4K, the original quad-core smart TV box became more and more incompetent. In particular, long-term mobile hard disk hung on the road to download the video, the hard disk can not stand the 365X24 hours of torture and eventually died, all the films disappeared. So began to look for a 4K player with a built-in hard disk, on the one hand can achieve support for 4K movies, in addition to long-term low-power download video.
Simply unpack:
Open Bor has a good reputation on the Blu-ray player. The latest flagship K9, with RK3368 master, 8-core CPU, GPU using PowerVR G6110, supports 4K 60FPS has a unique advantage in video decoding. The label of Mango TV is affixed to the package, which shows that it has genuine TV resources.
Give HDMI 2.0 data line, in order to stabilize the hard disk, the adapter is 12V 2A.

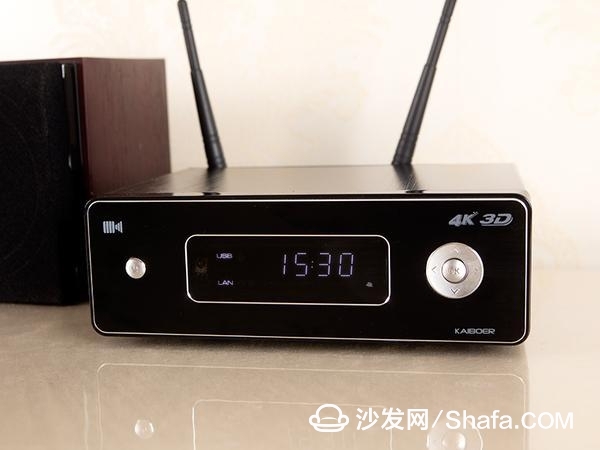

The front design has a power switch and a shuttle, which increases the convenience of use in addition to being more aesthetically pleasing. The normal operation can also be performed with the button without using the remote controller.

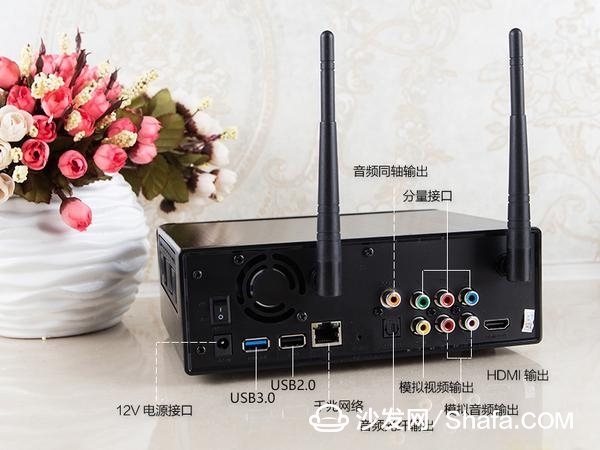

The difference in most boxes is that the interface of the 4K Blu-ray player opened by Bor K9 is more perfect. It not only supports analog video output and HDMI output, but also has component output. On the audio, coaxial output and optical fiber output support panoramic sound, providing professional audio and video experience.
In addition, the network interface uses a Gigabit interface, and one of the two USB interfaces is a USB 3.0 interface, which is more advantageous in read and write speeds. Unfortunately, the wireless network card is designed for 150M and does not meet the minimum requirement of 1200M for Gigabit transmission. Fortunately, the dual antenna is designed for WIFI gain, providing better wireless connection quality. However, families like me who have already implemented full Gigabit networks recommend using the network interface directly to increase speed. Because the wireless is full of 150 megabits of wireless card, the theoretical connection speed is 150/8=17.5MB/S, and the loss of wireless through the wall is about 15MB/S. Using the gigabit cable interface, it can reach more than 2 times. Speed ​​increase.
In terms of heat dissipation, active heat dissipation with higher efficiency is adopted, taking into account the internal hard disk heat dissipation of the box, and providing a stable environment for long-term boot downloading.
4K player open Bor K9 uses a full metal shell, and carried out a wire drawing process to enhance the texture while taking care of the heat.
Support 3.5 large-capacity hard disk, capacity up to 6T or more, provides a large amount of storage space for the player. In addition, the movie can be directly downloaded to the internal hard disk through a seed resource, enabling low-power download. In the choice of hard disk because of the last lesson, so chose to support the 24-hour Western Digital 3T red disk, in the Kai Bo K9's active cooling system with the guarantee of a long-term stable download, to prevent damage to the hard disk tragedy occurred
The distribution of the remote device unexpectedly adopted a large size, supporting key backlighting.
In addition, the remote controller has a learning function, which can learn the common keys on the remote control of the television, and realizes a remote controller to complete the control of the television and the K9.
Application and Experience:
1 Supports panoramic multichannel output.
Connect the power supply, network cable, audio fiber, and HDMI.
After booting, the panel displays the time and status, and the USB flash disk of the USB flash drive is automatically turned on. At the same time, you can see that the 4K light in the lower right corner illuminates the 4K status. The opener K9 adopts intelligent identification. If the TV does not support 4K, it will automatically cut. To 1080P state.
4K Blu-ray player open Bor K9 supports SPDIF source output, providing good support for panoramic deep multi-channel. The home use is a 5.1-channel stereo, so you need to select the source output in Settings - Audio Output.
At this time, you can see the power amplifier's DTS indicator light, indicating that multi-channel work properly, with the family's Swans M60, brings a better sound experience, when playing a large scene of the movie, the aircraft's boom, bombs The trajectory sounds of the ball are expressed in such a way that people feel like they are immersed in the environment.
2 UI is simple and neat, genuine APP mango TV resources are rich, but the added value needs to be improved.
In the UI, Bor opened a lot of commonly used software styles in previous years, and replaced it with a simple and crisp style. All applications at a glance, no pre-installed software and improved control experience.
The use of genuine APP Mango TV has rich video resources, the film has been updated in a timely manner, in addition to a stable connection speed.
The vast majority of movies support high definition, and super-clear films are not rare. The clarity of the film is guaranteed. Unfortunately, K9 does not have a VIP member by default. For some of the latest sources, you need to purchase another VIP. What I would like to say here is that since it is in-depth cooperation with Mango TV, we may provide some VIP privilege. Compared with the first-time activation of sending VIP membership for 3 months to enhance the added value of products, we can greatly enhance our experience.
3 Video format support is comprehensive.
The 4K Blu-ray player KBolle K9 uses the RK3368 solution, 64-bit ARMv8 architecture Cortex-A50 eight-core CPU, GPU using PowerVR G6110, support OPENGL ES 3.1, 4K×2K H.264/H.265 60fps hard decoding.
The performance of the Bunny Road with 3W points is not very eye-catching, but the support for the video is particularly good. The format is not supported. If the quad-core box can also be higher on the K9, then the decoding of the video is very different.
Especially for the 2K 4K support Kaiboer K9 can be very competent.
4 Support multi-protocol poster wall, automatically capture film and television profiles.
Everyone in the ES file browser is familiar with it. At the beginning, many smart boxes couldn't directly support NAS and computers to share video. So many of us had to install an ES browser to solve it. The biggest problem is that ES support for the box is not ideal, especially It is a box on the remote control that cannot switch the mouse. It must be used for a mouse. Therefore, the support for sharing on the Korbor K9 4K Blu-ray player is still surprising. You can directly read NAS, computer sharing, USB, internal hard disk and other protocol-sharing videos in the poster wall.
With custom additions, select the appropriate directory to automatically scan and automatically match the correct movie. The automatic sorting of movies is particularly convenient for use. The main reason for the occasional match failure lies in manually changing the name of the movie. Therefore, it is not recommended to change the name of the downloaded movie. If it is necessary to change it, Chinese characters can only be added in front of the original file name to correctly identify it.
This is an auto-scanned video that can be automatically added to the poster wall and automatically classified while automatically grabbing movie posters from the Internet. In addition, for the film that failed to match, it can also be found in all, and it can still be played normally except for no movie poster display.
After the automatic matching is successful, you can see the introduction of the movie. The use of the movie is not much different from that of the Mango TV that we often use. The only difference is that you can see from the path location that the address of the shared device is used. In other words, it is directly retrieved from the shared device during playback, which is especially close to homes where the NAS and other devices are already in the home. Although there are also KODI applications on Android systems that can achieve the same functionality, the premise is that ROOT must be installed, and a bunch of plug-ins must be installed for complex configuration, which is not suitable for novice users. By contrast, Kaibol's poster wall is much simpler and more convenient.
Because the home is a gigabit network, the speed of watching through the network is very fast, the network transmission speed is 25-30MB/s to upload 30-40MB/s, this speed is enough to clear the video and most of the 4K Requirements for direct playback of the film intranet.
5 Perfect support for local video decoding.
Let's talk about support for local video decoding, first of all, talk about the now very popular topic 4K. Compared to the current normal 1080P video, 4K video has a higher resolution, especially when viewed on a 4K TV, you can see more details, so bring better details in the viewing effect, which is also 4K TV The reason why it is popular. So whether 4K video K9 can support perfectly.
The first is a 4K video with a data rate of 7996KBPS.
Plays smoothly, and fast-forward playback of videos can be reflected in 1 second
This is a 4K video with a data rate of 11.3MB/s. The fluency is equally fine. The delay for fast forward and drag and drop is about 1.5 seconds.
This is a 4K video at a data rate of 21.7MB/s, still smooth, with delays of around 1.5 seconds for fast forward and drag and drop.
LG's test sample, 4K video at a data rate of 50.2MB/s, is still smooth, with delays of around 2 seconds for fast-forward and drag-and-drop.
Finally, Super BT’s 4K demos have a data rate as high as 91.9MB/S. At this time, there is a noticeable churn when playing, especially sound, but fast forward and drag and drop can still be reflected in about 3 seconds.
The sorting of 4K videos played can be found out that the KBottle K9 can play smoothly in addition to the TB display sample with a data rate of up to 91.9MB/S. Calculated at a rate of 90MB/s, a 90-minute video has a capacity of about 270G or more. The 4K video source that can be downloaded to the Internet is generally about 47G. 120G are relatively rare, and the data rate is 120G. Will not exceed 60MB/S. The popular BT movie ducks fly at a data rate of 30MB/s, but the beautiful ducks do not exceed 50MB/S. Therefore, the daily 4K video, Kaibor K9, can be competent.
Monitored by software in 4K playback, the average CPU usage is about 36%, even if it is 50.2MB/S LG SPAN demo, the height will not exceed 45% and the maximum memory no more than 70%, so the high bit rate The K9's 2G memory is indispensable for 4K movies.
This is a H265-encoded video that can be played smoothly.
There is basically no pressure for 1080P video, and the CPU load does not exceed 30%.
6 3D conversion is convenient, support captions online download and channel switching.
Watching 3D videos on TV can achieve different experiences. In particular, the better the TV size, the better the 3D effect and the more off-screen. Watching a 3D movie requires a TV and a player that supports 3D at the same time to get a good experience. The KBolle K9 supports multiple modes of 3D switching. Covers the 3D format of the movie that doesn't need to worry about downloading right and left, up and down. In addition, 3D videos can also be converted to 2D playback, especially for families that have 3D movies but no 3D TV. Although it also comes with 2D 3D conversion function, but the effect is not satisfactory, there will be misplaced, after all, the film source is 2D so it is not recommended.

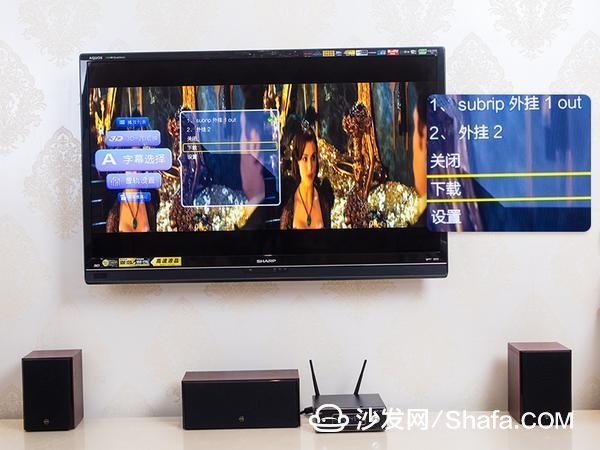

I don’t know whether or not everyone has such an experience. After downloading a large movie, they found that they did not have subtitles and had to search for subtitle files. However, they found that the downloaded subtitles did not match their own videos, resulting in subtitles displaying time and sound. Can't synchronize. My previous solution was to use the shooter player to open the movie under WIN and download the subtitles through the shooter player. Then put the subtitles into the box. The operation is very inconvenient, and on the K9 it is possible to download subtitles directly.
And in the download can choose different subtitle files to match, find the normal subtitles, very convenient, no longer need to go to the computer to turn subtitles.
In addition, the built-in player supports multi-channel switching, especially for users with multi-channel audio in the home. Through the setting of audio tracks, multiple channels can be opened to achieve a deeper panoramic experience. It is highly recommended that everyone use this feature.
7 Supports three-party application installation extensions.
After all, the mango TV that comes with it wants to watch the latest video is the need to open VIP, and many times we want to eat more free packages, so this time you need to install a three-party application to solve. Users can refer to the tutorial: Open the Kor Box K9 installation method Put the application APP into the U disk, and press the 5200 on the remote controller to install the third-party application.
summary:
4K Blu-ray player open Bor K9, the biggest charm lies in the perfect support for 4K video, exclusive poster wall function is easy to use, can expand NAS, computers and other video files shared by different terminals for automatic classification, and automatically match posters and video profiles, in Supports online download of subtitles when playing videos, and supports free switching of multiple 3D formats. In addition, the 3.5-inch hard disk with built-in 6T and above is a low-power downloader and supports massive amounts of audio and video. What I personally look forward to is the ability to open up to the outside for sharing in the later period. Although the current sharing supports the perfect support for multiple sharing protocols, it cannot share the resources on its own hard disk externally, and it has to be said to be a little regret.
