Recently, the machine often "strikes". After the return of the motherboard to the factory, it has been firm for a while and there have been a variety of wonderful problems such as a sudden USB failure, no sound card output, and so on. Since its installation in 14 years, it has not tossed for more than two years. Therefore, it has taken decisive actions to purchase new aircraft. In fact, the old machine "strikes" is just an excuse to install new machines for themselves. Amoy to replace the motherboard should be able to solve the problem, buy a new machine today, got his wish. Gossip is less Syria, get back to business, it is time to "Show" wave!
Configuration:
CPU: I5 6600K
Heat dissipation: Captain Kyushu Fengshen 240
Memory: Kingston 28G 2400
Motherboard: ASUS Z170 PRO GAMING
Graphics: Asus STRIX RX470
Hard Disk: Kingston UV400 240G
Hard Disk: WD Blue Disk 1T
Power Supply: Tt Smart 530M Riing
Chassis: Tt Harmony RGB
Unpacking machine:

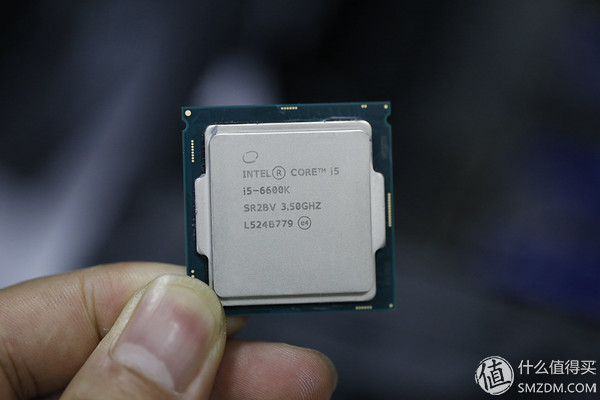

The 6600K SMD received by the CPU was better when tested on the hand. The 1.35V OC 4.5 was used stably, but the cooling requirements were relatively high. Therefore, it was used with 240 water cooling. The copy machine was pressed to 70 degrees. Comparing with satisfaction
Originally wanted to buy I7 6700K boxed, think about with the RX470, CPU performance is a bit surplus, and more than 2,000 pieces of the price enough for me to engage in a bulk 6600K, more money can pull a wind-cooled radiator, Why not.
Kyushu Fengshen Captain 240 water cooler set CPU radiator, dual 12CM fan
Water-cooled head with glowing breathing light, saliva for a long time, finally finally done today
Copper bottom heat better
If you want to use overclocking for a long time, besides good heat dissipation, the motherboard cannot be saved. ASUS Z170 PRO GAMING one motherboard, 10-phase digital power technology sounds very powerful.
Out of the box, the motherboard is exposed.
Dark brown theme with red lines, very nice ASUS, GAMING lineage identification heat sink
Onboard SupremeFX High Quality Audio Solution
Motherboard accessories, first-line manufacturers generally include stickers, such as stickers, in their own high-end products. Here are the logo stickers (beliefs, beliefs, etc.).
I/O area, very rich, VGA, DVI, HDMI, DisplayPort interface is complete, 4 USB3.0 USB 3.1 interface and so on a lot, a little heap interface feeling
Memory & SSD
Memory price of cabbage, directly engaged in a set of 28G 2400 sets.
The back of the memory module, FURY series 28G 2400 sets.
Install on the motherboard
Video card
Look at the video card Raptor RX470 video card, 4GB GDDR5 video memory
The video card is wrapped in a soft "lid" quietly wrapped in anti-static bags.
Graphics accessories, manuals, software CDs, and the right-hand side of the CD are said to be ROG cable management belts. Advanced shipping is not the same thing. It really sells beliefs.
Real graphics card, because RX470 heat is not too much, dual fan's radiator is sufficient to deal with
Real graphics card, because RX470 heat is not too much, dual fan's radiator is sufficient to deal with
STRIX faith "light" LOGO
The nest of this system, the Tt Harmony Chassis
The side of the package marks the main parameters of the chassis
Looking from the side of the chassis to the top, the Harmony Express is coming at a high speed
From another point of view, there are two "corners" on the head.
Power Tt Smart SE 530W Hyun template, rated power 530W
This is a full module power supply, the interface has obvious connection identification, no error
Power custom line, classic red and black color
Installed
Accessories almost tan, below the start of installation

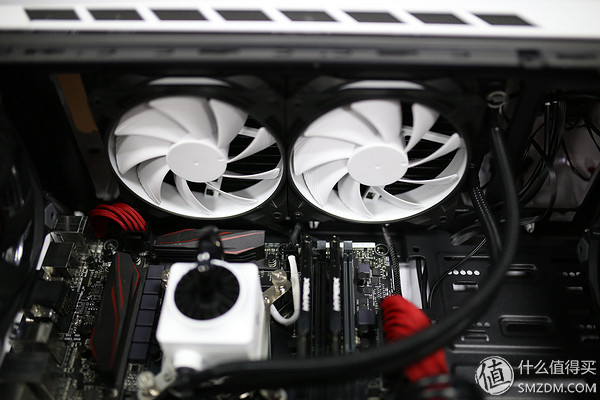

The heat dissipation body and the fan are separated, so the installation of these components for the memory and CPU power supply provides a convenient space.
ASUS ROG Raptor RX470 is also in place
The whole machine is installed and the back is wired.
Boot, red light, once lit, the overall is relatively smooth
Captain with white light breathing water, really toxic, Yan value burst table ah
test:
ASUS Z170 PRO GAMING motherboard BIOS settings interface is also familiar with the red and black style
Overclocking setting options are very rich, before the test on the hands of the I5 6600K physique, 1.35V OC4.5G is the most stable, go straight to the subject directly set the frequency and voltage
Save restart
OC4.5 achieves I5 6600K CPU-Z interface
Performance Testing:
Kingston UV400 240G AS SSD read and write test Read: 495.89 MB/s Write:438.92 MB/s
AIDA64 memory running points
After CINEBENCH R15 OC4.5G I5 6600K CPU score 750cb, remember the default is 712cb, OC performance after a certain increase
AIDA64 CPU full pager, the default temperature is stable up to about 52 degrees

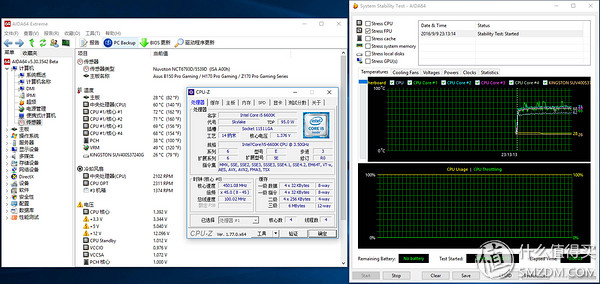

OC 4.5G, AIDA64 CPU full pager temperature stabilized up to 72 degrees, it seems that the 240 water cooling performance of the captain 240 is remarkable, value and strength quite
STRIX RX470 Hardware Information in AMD Driver Settings
3DMARK Fire Strike Ultra 2338
3DMARK Fire Strike Extreme 4545
3DMARK Fire Strike 9098, from the 3D run points on the RX470 slightly better than the GTX970
Graphics card temperature copy machine: full load 64 degrees
Watch the Vanguard
The new machine has been installed and the tests have been completed. Then we can finally have a good time playing. Watching Pioneer 1920 1200 resolution effects is fully open!
Loading the game, can not wait to enter the game, the game average 90FPS above the temperature of 63 degrees Celsius, the overall fairly satisfied.
Oh wow, good open
Under the sun off the light effects
RGB Hyundai version of the chassis, can change the light through the keys on the chassis
Experience: Overall, it is still quite satisfied with the installed capacity, regardless of performance, heat or color value are good. To say where is not enough, is the side of the chassis through the penetration is not enough, can not see the inside of the chassis after the installation of accessories, behind the intention to re-customized a custom installation. In addition, the ASUS Z170 PRO GAMING motherboard installed after the light only to find the original monochrome red light, although it can also control the effect of breathing software, but without RGB color feel a little regret. . .
